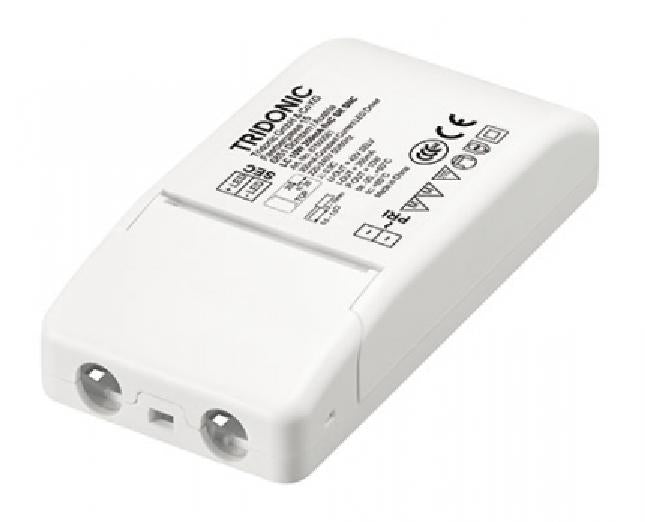

Tridonic 87500581 - LED EVG LC 10W 350mA fixC SR SNC
With the LC 10W 350mA fixC SR SNC from its ESSENCE series, Tridonic offers a compact constant current driver for luminaire installation. The output current is 350 mA with a maximum output power of 10 W. The LED ECG is suitable for lamps with M and MM according to EN 60598, VDE 0710 and VDE 0711. It is also equipped with IP20 protection. The housing is made of white polycarbonate. Thanks to its extra flat design, the driver is ideally suited for restricted installation conditions (e.g. small ceiling cutouts and low ceiling cavities). Two separate strain reliefs for input and output cables with very robust terminals are integrated. The driver is equipped with temperature protection according to EN 61347-2-13 C5e and has overload protection, short-circuit protection and open-circuit protection. In addition, it is protected against overshooting of the output current when the mains is switched on or off. The nominal service life is up to 50,000 hours. Tridonic offers a 5-year guarantee on the ECG.
- Cap N/A
- Volts N/A
- Watts 10W
- Finish/Colour N/A
- Life 50 000
- Length N/A
- Diameter
- N/A
- Manufacturer Tridonic
- Beam Angle N/A
